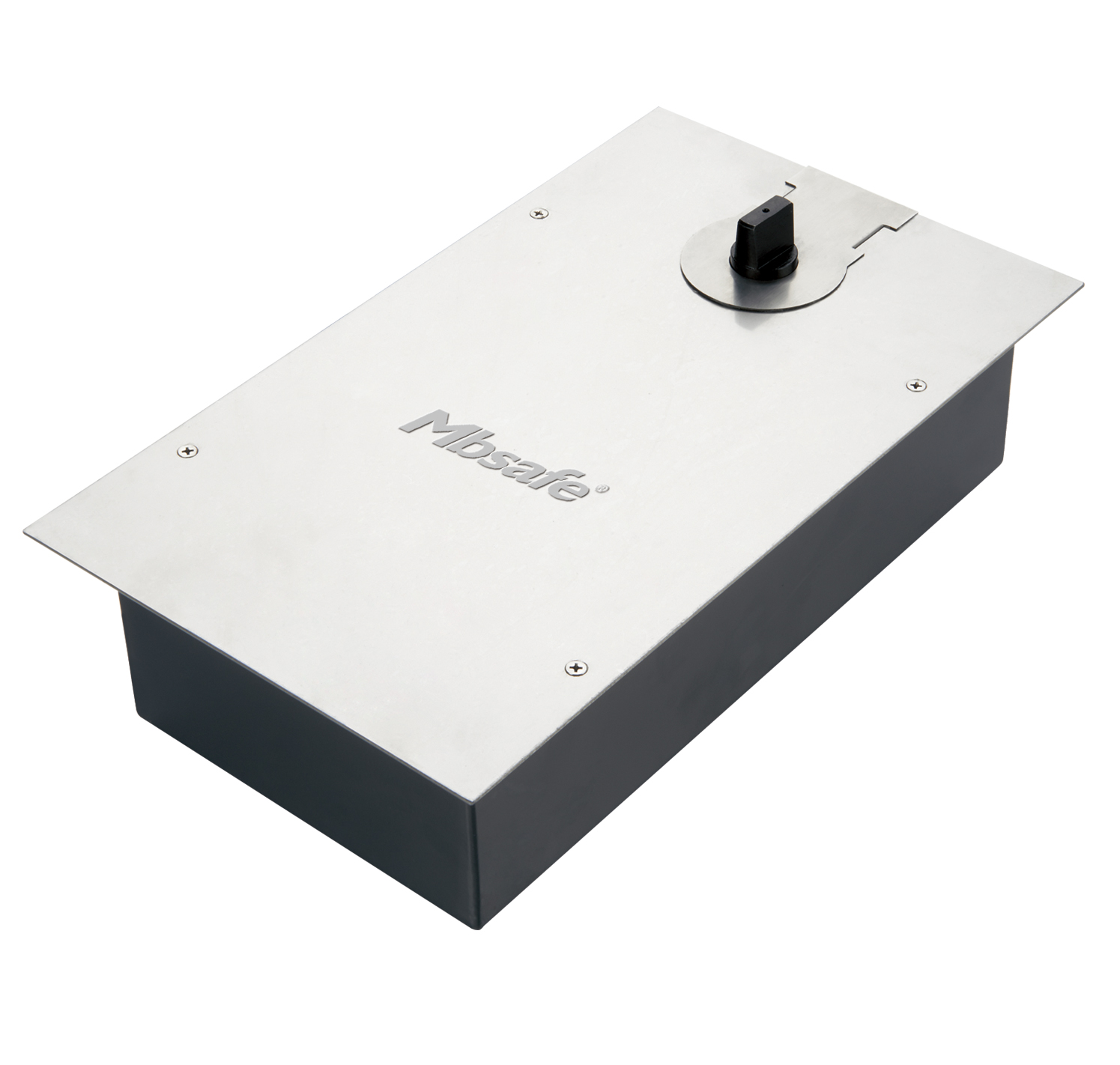

180-Degree Automatic Swing Door Operator

Quantity:
Inquire Add to Basket

  • MBS-DZ01

  • Mbsafe

  • 8537101990

MBS-DZ01

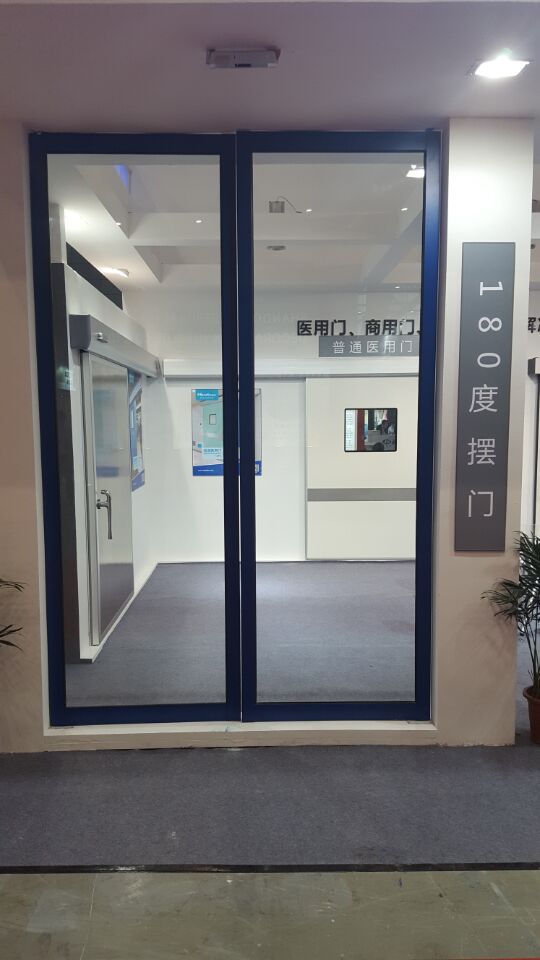

Installation Project

Cache_-1a6853eebe85762.






The most important specification is " convenience " for buyers :

1. 180° Swing , it can open to the left or right . Both directions are OK .

2. The motor is underground , the digital controller can be installed in the wall or in the frame .

3. It can be connected with different kinds of access control and sensors




Specification
Leaf Weight   ≤ 200 KG
Door Width   ≤ 1500 mm
Controller    Digital Controller
Motor   DC 24V 55W Brushless Motor
Opening and Closing Time    3-14S
Voltage Supply   AC 220-250V   50-60HZ
Door Holding Time   0.5-10S (Adjustable)
Opening Direction   Optional
Opening Range   180-Degree
Opening Direction   Optional
Protection Level   IP44
Working Temperature   ―30 ～ 50 ℃
Extension   Safety Sensor , Access Control and etc.
