Automatic Sliding Door Operator

Quantity:
Inquire Add to Basket

  • HB-100/HB-200

  • Hans Burg

  • 8537101990

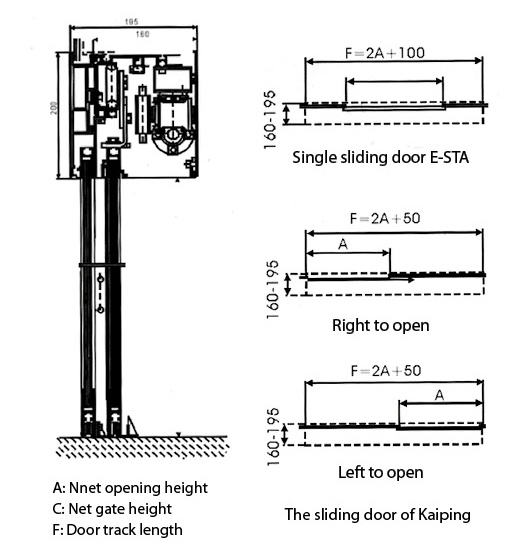

2014汉斯博格样册7_看图王



Specification HB-100 HB-200
Net Opening Width A Double  600-3000mm 700-4000mm
Single 700-1500mm 700-2000mm
Net Opening Height G Maximum Height 3000mm 4000mm
Door Weight Double  2×120 KG 2×200 KG
Single 1×150 KG 1×300 KG
Controller Size Height 200mm 200mm
Depth 225mm 225mm
Opening Speed Double  15-68cm/s ( Adjustable ) 15-68cm/s ( Adjustable )
Single 15-68cm/s ( Adjustable ) 15-68cm/s ( Adjustable )
Closing Speed Double  15-65cm/s ( Adjustable ) 15-65cm/s ( Adjustable )
Single 15-65cm/s ( Adjustable ) 15-65cm/s ( Adjustable )
Door Keep Opening Time 0.5-10s ( Adjustable ) 0.5-8s ( Adjustable )
Electric Data Voltage AC 220V-250V , 50/60Hz AC 220V-250V , 50/60Hz
Maximum Current 5A 1A
Maximum Power 150W 200W
Waiting Power 12W 14W
Fuse  2.5A 3.5A
Working Temperature   -35 ～ 85% （ non ― condensing )
