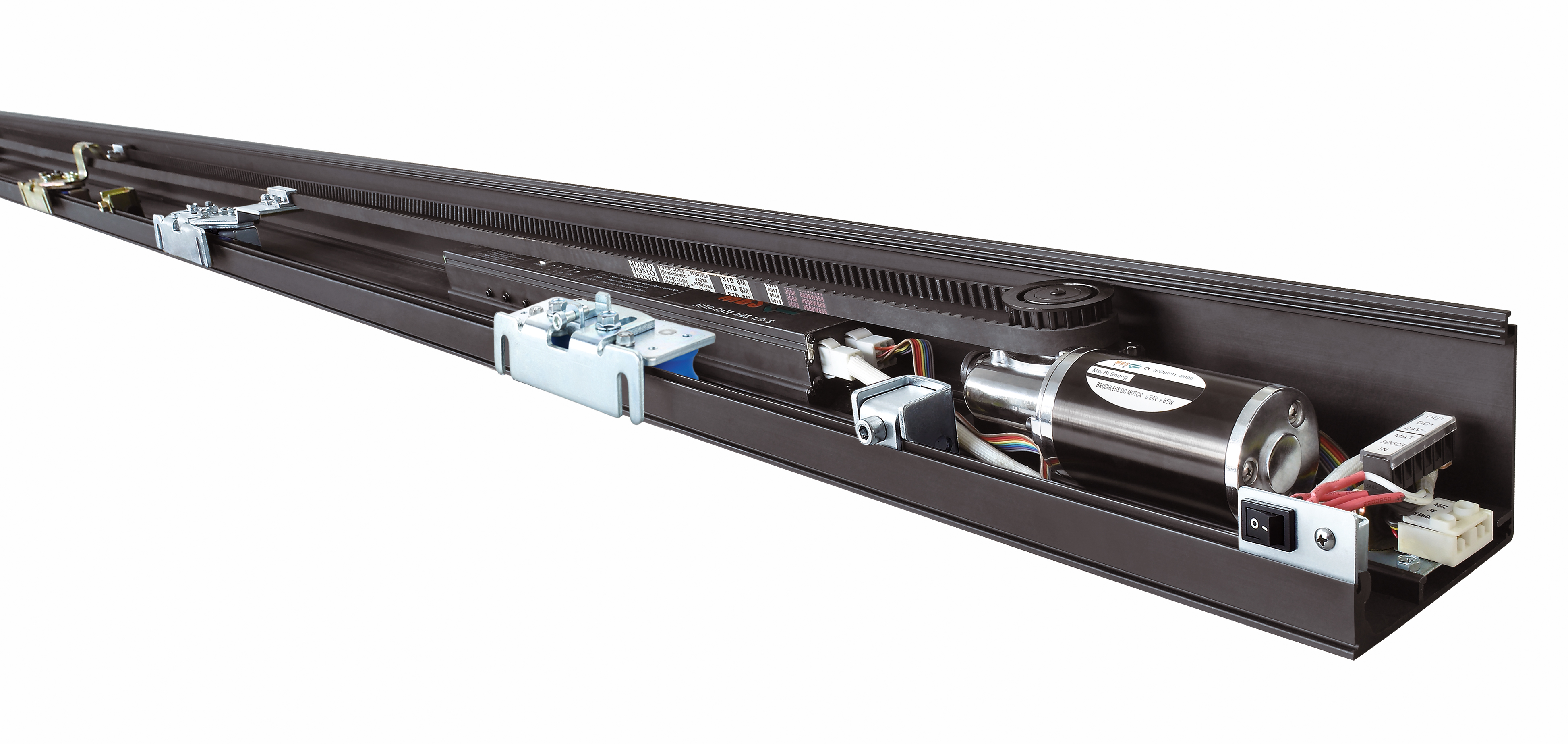

MBS-120
Mbsafe
8537101990
| Specification | Single Door | Double Doors |
| Leaf Weight | ≤ 150 KG | ≤ 120 × 2 KG |
| Door Width | 700 MM ～ 1300 MM | 600 MM ～ 1250 MM |
| Controller | Digital Controller | Digital Controller |
| Motor | DC 24V 55W Brushless Motor | DC 24V 55W Brushless Motor |
| Opening Speed | ≤ 400 MM/S ( Adjustable ) | ≤ 400 MM/S ( Adjustable ) |
| Closing Speed | ≤ 300 MM/S ( Adjustable ) | ≤ 300 MM/S ( Adjustable ) |
| Door Holding Time | 0.5 S ～ 10 S ( Adjustable ) | 0.5 S ～ 10 S ( Adjustable ) |
| Manual Thrust | ≤ 45 N | ≤ 45 N |
| Opening Direction | Optional | Optional |
| Voltage | AC 85V ～ AC 265V 50 Hz ～ 60 Hz | AC 85V ～ AC 265V 50 Hz ～ 60 Hz |
| Temperature | ―30 ～ 50 ℃ | ―30 ～ 50 ℃ |
| Humidity | 35 ～ 85% （ non ― condensing ) | 35 ～ 85% （ non ― condensing ) |
| Extension | Safey Sensor , Access Control and etc. | Safey Sensor , Access Control and etc. |
| | Parts List | Quantity | Specification |
| Standard | Track | 1 PCS | 4.2 Meters |
| Controller | 1 PCS | | |
| Motor | 1 PCS | | |
| Power Switch | 1 PCS | | |
| Timing Belt | 1 PCS | 7.0 Meters | |
| Belt Connection | 1 PCS | | |
| Remote Control | 1 PCS | | |
| Tension Wheel | 1 PCS | | |
| Sensor | 2 PCS | Motion Sensor | |
| Stopper | 2 PCS | | |
| Hanger | 4 PCS | |
| | Optional Parts | Specification | ||||
| Optional | Front Cover and Side Cover | Framed Glass Door and Frameless Glass Door | ||||
| Electric Lock | | |||||
| Door Clamp | | |||||
| Door Flapper | | |||||
| Photocell | | |||||
| Backup Power | | |||||
| Safety Sensor | | |||||
| Access Control | | |||||
| etc. | | |||||
