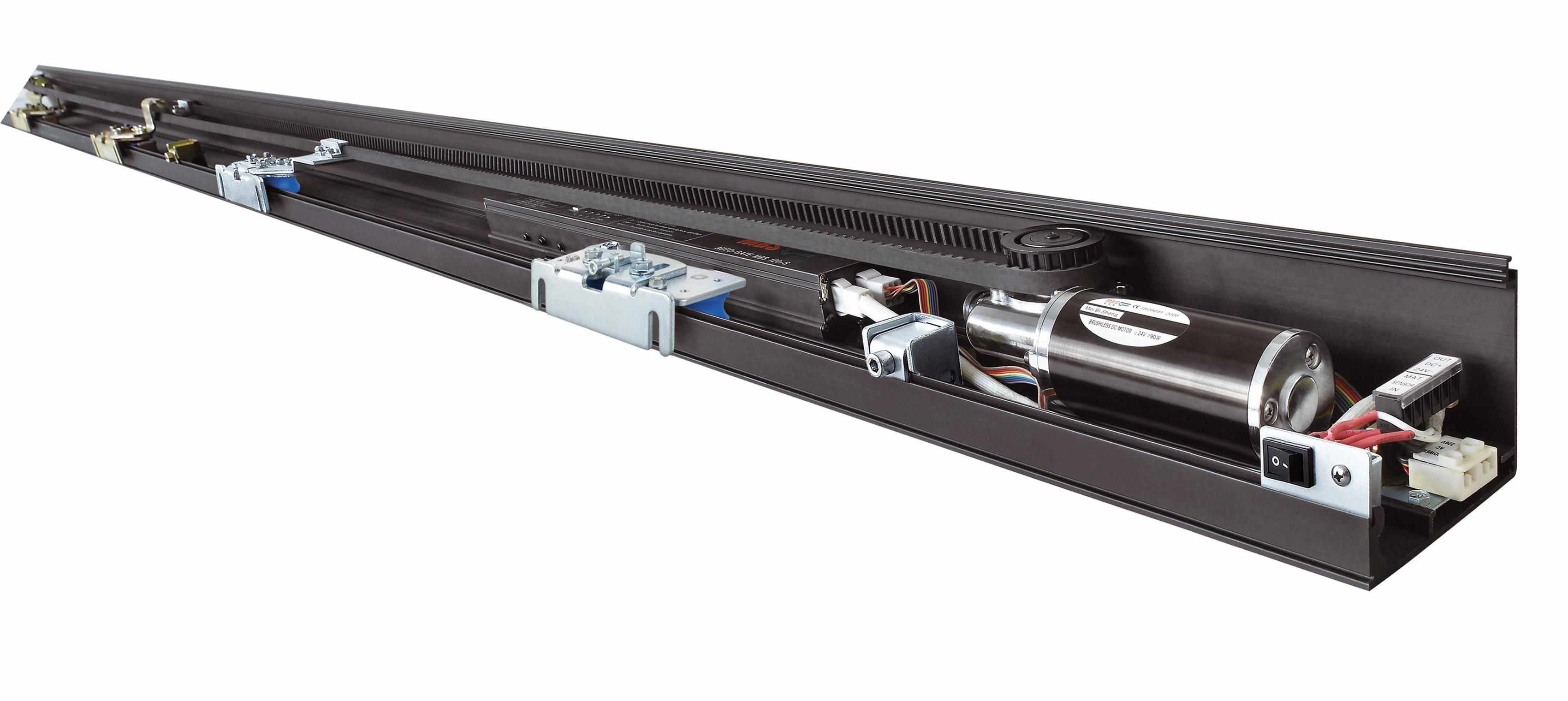

Heavy Type Automatic Sliding Door Operator

Specification	Single Door	Double Doors
Leaf Weight	≤ 200 KG	≤ 150 × 2 KG
Door Width	700 MM ～ 2000 MM	600 MM ～ 1800 MM
Controller	Digital Controller	Digital Controller
Motor	DC 24V 100W Brushless Motor	DC 24V 100W Brushless Motor
Opening Speed	≤ 400 MM/S ( Adjustable )	≤ 400 MM/S ( Adjustable )
Closing Speed	≤ 300 MM/S ( Adjustable )	≤ 300 MM/S ( Adjustable )
Door Holding Time	0.5 S ～ 10 S ( Adjustable )	0.5 S ～ 10 S ( Adjustable )
Manual Thrust	≤ 50 N	≤ 50 N
Opening Direction	Optional	Optional
Voltage	AC 85V ～ AC 265V 50 Hz ～ 60 Hz	AC 85V ～ AC 265V 50 Hz ～ 60 Hz
Temperature	―30 ～ 50 ℃	―30 ～ 50 ℃
Humidity	35 ～ 85% （ non ― condensing )	35 ～ 85% （ non ― condensing )
Extension	Safey Sensor , Access Control and etc.	Safey Sensor , Access Control and etc.

	Optional Parts	Specification
Optional	Front Cover and Side Cover	Framed Glass Door and Frameless Glass Door
	Electric Lock
	Door Clamp
	Door Flapper
	Photocell
	Backup Power
	Safety Sensor
	Access Control
	etc.
